Description

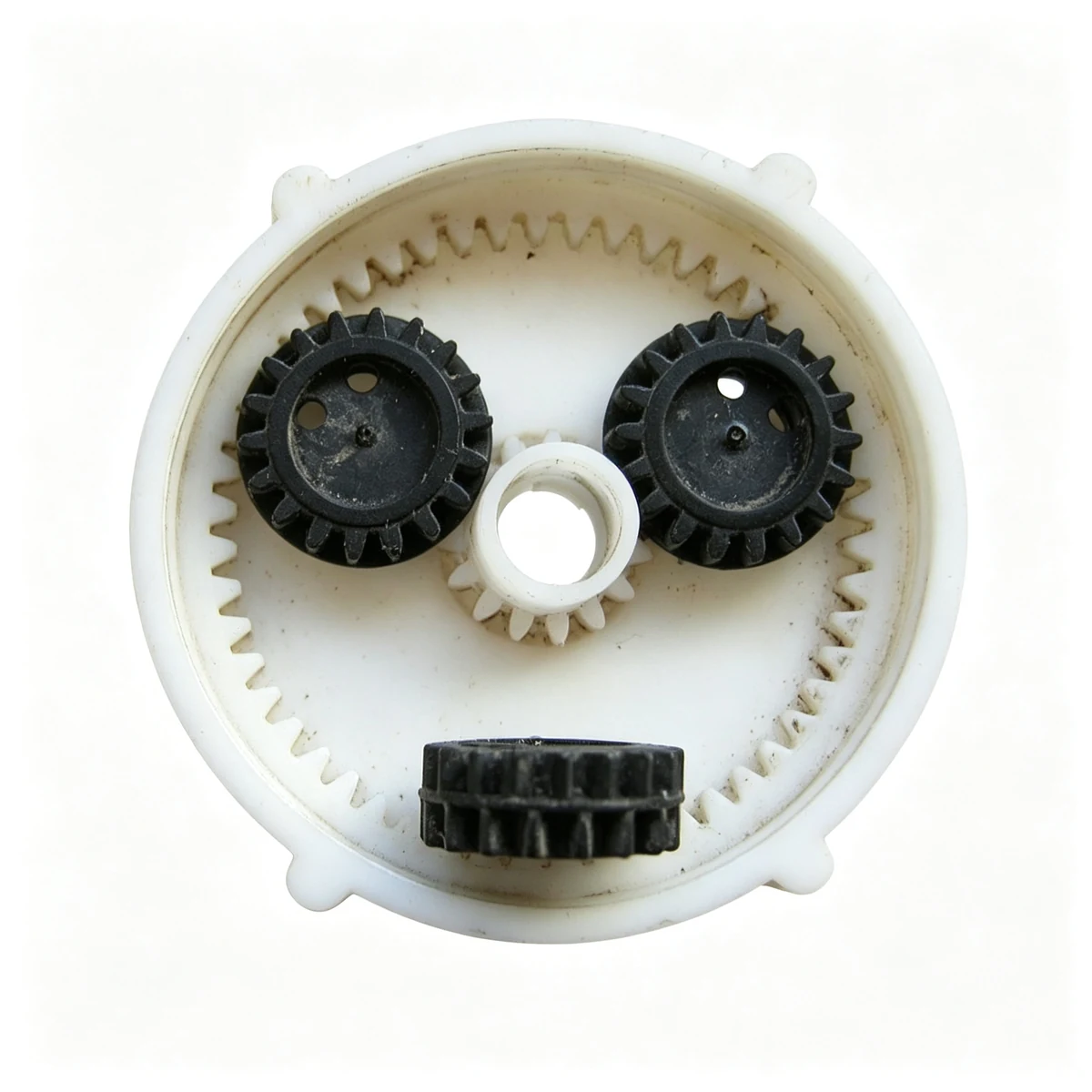

Engineering review for sun gears, planet gears, ring gears, carriers, pins, bearings and sealing components used in planetary reducers.
Construction and engineering scope
Replacement parts must match the complete mating geometry and interface. Individual spare parts are not claimed interchangeable without identification, drawing or reverse-engineering review.
Additional engineering views
Technical parameters
| Core elements | sun gear, planet gears, ring gear, planet carrier |
|---|---|
| Related parts | planet pins, bearings, seals, retainers and hardware |
| Identification | model, serial/nameplate, drawing or measured geometry |
| Gearing data | tooth count, module/DP, pressure angle and helix if applicable |
| Material | must be confirmed from drawing or reverse-engineering plan |
| Caution | interchangeability requires dimensional review |
Typical configurable options are shown for RFQ planning only. Final values are fixed by the approved drawing, material specification, heat treatment, ratio, duty and inspection plan.
Applications and selection
Send the gearbox model/nameplate, requested part, quantity and clear photos. For gears, add tooth data and dimensions or send a sample when documentation is unavailable.
Customization options
Engineering review can cover tooth count and ratio, spur or helical geometry, material and heat treatment, motor or shaft interface, output flange or spline, bearing arrangement, lubrication, sealing, backlash class and inspection documentation. Features are confirmed against the approved drawing rather than assumed from a similar model.
Installation and maintenance
Check shaft alignment, pilot fit, fastener grade and tightening method before commissioning. Do not exceed the confirmed continuous or peak torque, radial load, axial load or input speed. For replacement work, verify the mounting drawing and output interface before ordering.
Quality and inspection
Inspection planning can include material traceability, hardness, tooth geometry, runout, dimensional inspection and assembly checks according to the RFQ and approved quality plan. Ask for the required inspection level before quotation.
FAQ
Can you manufacture from a drawing or sample?
Yes, the engineering review can start from a drawing, sample, tooth data or a complete gearbox identification. Final feasibility is confirmed after dimensional and material review.
What information is needed for a replacement?
Send model or nameplate, quantity, ratio, motor or input speed, output torque or duty, shaft/flange dimensions, mounting drawing and clear photos. For individual gears, add tooth count, module or DP, pressure angle, face width and material/heat-treatment requirements if known.
