Heavy-Duty Industrial Planetary Drive

Industrial planetary drive engineering for high-torque machinery, mobile equipment and process applications with configurable input/output interfaces.

Description

Industrial planetary drive engineering for high-torque machinery, mobile equipment and process applications with configurable input/output interfaces.

Heavy-Duty Industrial Planetary Drive

Construction and engineering scope

Multiple planetary stages can provide high torque density in a compact coaxial arrangement. Heavy-duty units require careful review of service factor, thermal duty, shock loading, bearing loads, lubrication and sealing.

Planetary gear interface data required for engineering review

Additional engineering views

Open planetary drive cutaway showing the internal ring gear and carrier area
Open cutaway view for discussing ring gear, carrier support and internal load path.

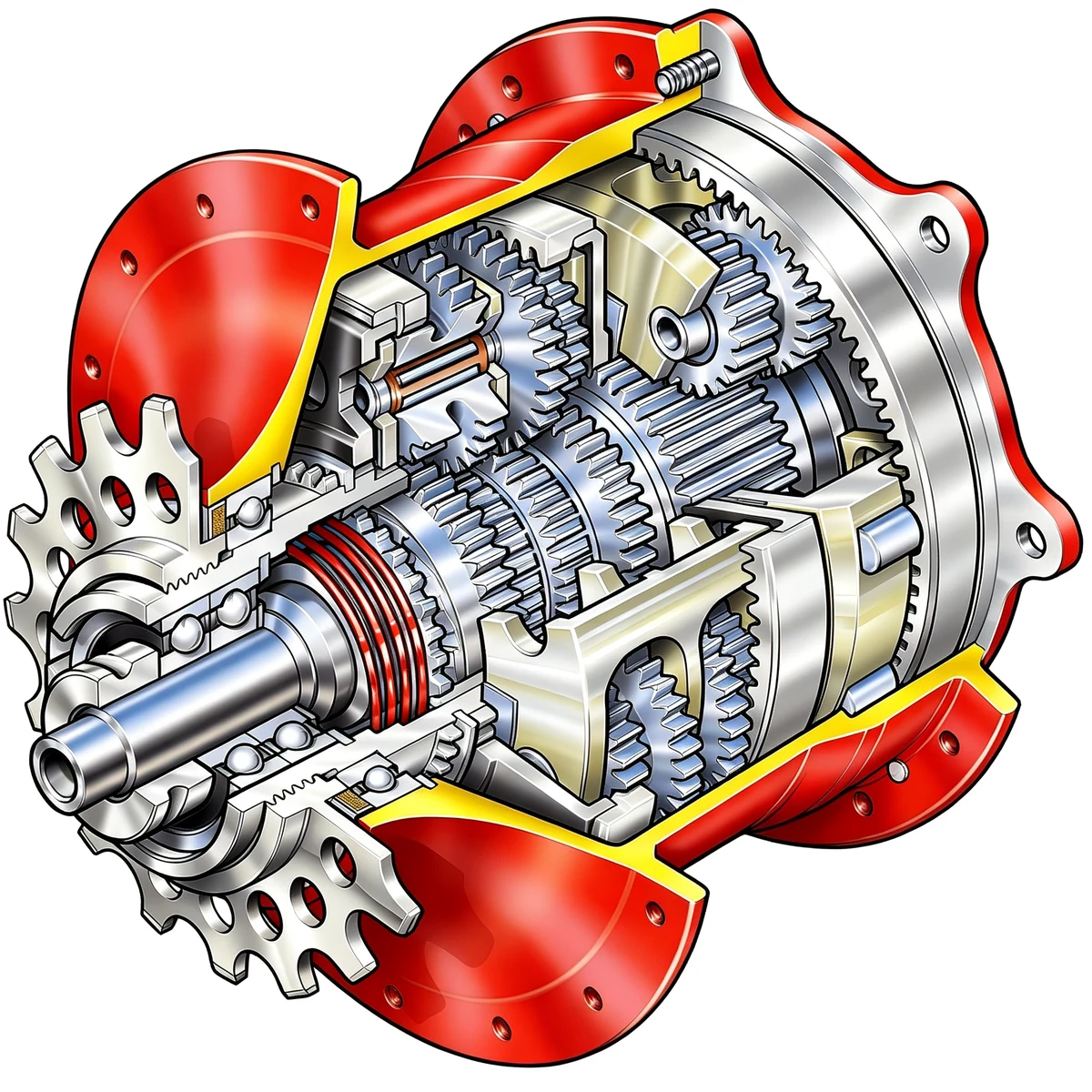

Sectioned multi-stage gearbox illustration for transmission architecture discussion
Illustrative sectioned gear train; exact internal architecture is model-dependent and must be confirmed from drawings.
Open planetary gearbox housing showing internal gears and supported shafts
Open housing view used to explain internal gearing, bearing support and service identification.

Technical parameters

Configuration coaxial / right-angle / motor or hydraulic input
Ratio engineered by stages; confirm required overall ratio
Output shaft, spline, flange or custom interface
Duty continuous, intermittent or shock-loaded – must be declared
Lubrication oil or grease system selected by size/speed/duty
Environment sealing and corrosion protection by application

Typical configurable options are shown for RFQ planning only. Final values are fixed by the approved drawing, material specification, heat treatment, ratio, duty and inspection plan.

Applications and selection

Provide power or input torque, input speed, required output speed/ratio, peak shock load, duty cycle, radial/axial loads, mounting envelope, output interface and operating environment.

Customization options

Engineering review can cover tooth count and ratio, spur or helical geometry, material and heat treatment, motor or shaft interface, output flange or spline, bearing arrangement, lubrication, sealing, backlash class and inspection documentation. Features are confirmed against the approved drawing rather than assumed from a similar model.

Installation and maintenance

Check shaft alignment, pilot fit, fastener grade and tightening method before commissioning. Do not exceed the confirmed continuous or peak torque, radial load, axial load or input speed. For replacement work, verify the mounting drawing and output interface before ordering.

Quality and inspection

Inspection planning can include material traceability, hardness, tooth geometry, runout, dimensional inspection and assembly checks according to the RFQ and approved quality plan. Ask for the required inspection level before quotation.

FAQ

Can you manufacture from a drawing or sample?

Yes, the engineering review can start from a drawing, sample, tooth data or a complete gearbox identification. Final feasibility is confirmed after dimensional and material review.

What information is needed for a replacement?

Send model or nameplate, quantity, ratio, motor or input speed, output torque or duty, shaft/flange dimensions, mounting drawing and clear photos. For individual gears, add tooth count, module or DP, pressure angle, face width and material/heat-treatment requirements if known.

RFQ checklist: product/model, quantity, application, ratio or tooth data, continuous and peak torque, input speed, backlash target, material/heat treatment, interface drawing and inspection requirements. Email [email protected].
